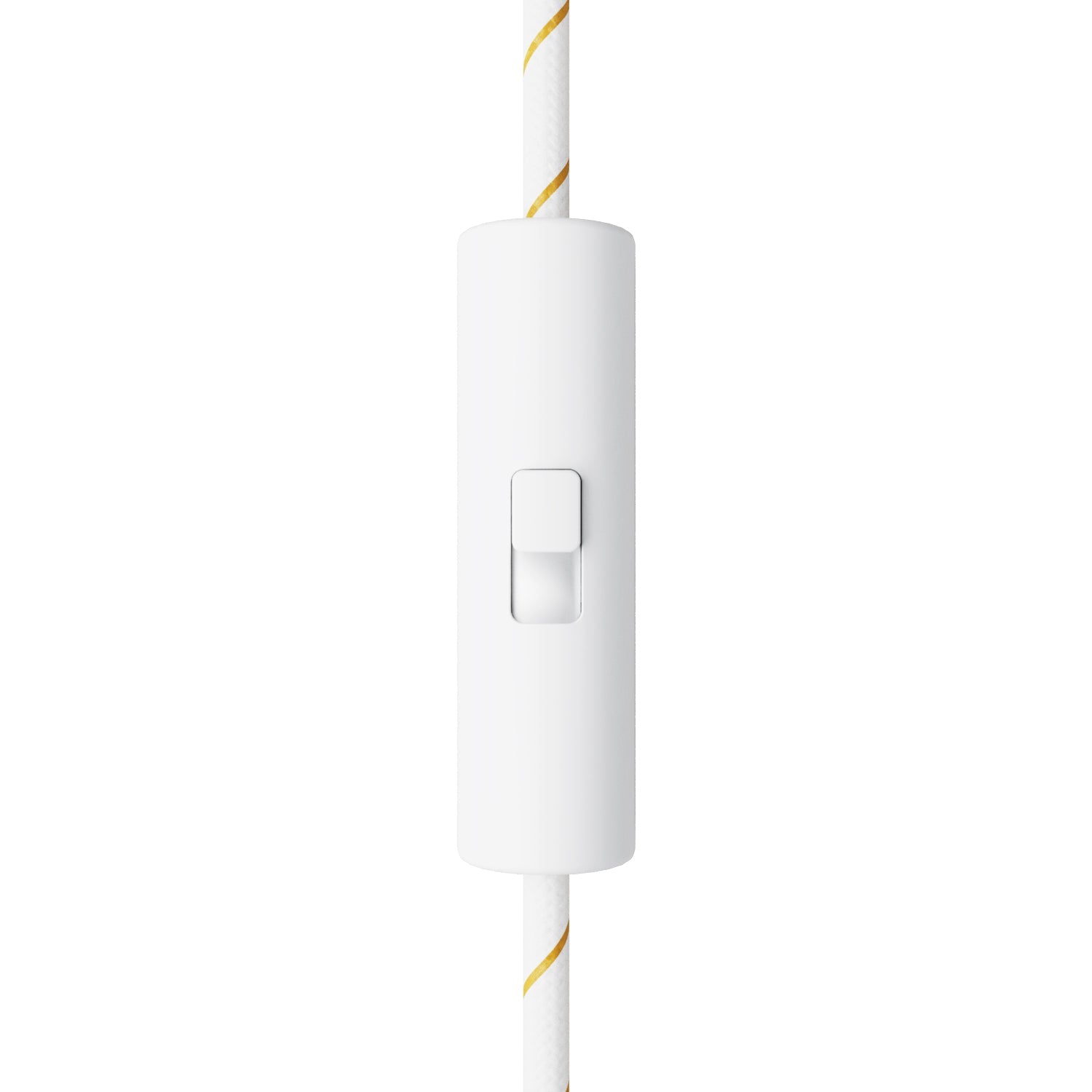

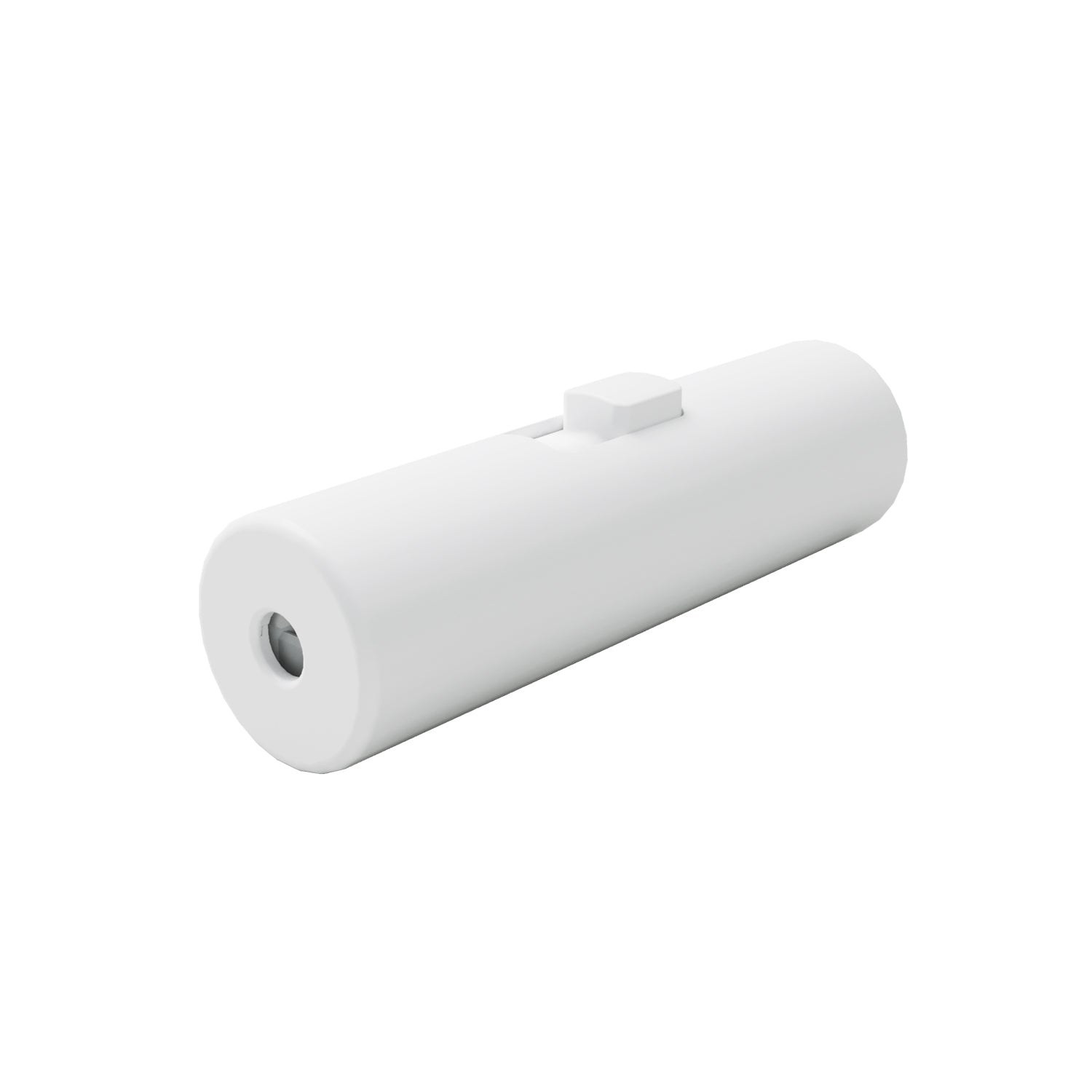

Single-pole pull switch with cylindrical shape and earth terminal - White
Single-pole pull switch with cylindrical shape and earth terminal - White
Available in stock
Request a free personalized consultation.
Description
Description
The single-pole pull switch with earth terminal, in a white finish, stands out for its bright and discreet design. Ideal for modern, airy spaces, this compact, cylindrical electrical component combines functionality with clean aesthetics. Made from durable thermoplastic, it is a refined choice for controlling the power supply to a new lamp or elegantly replacing an old switch in a bedside lamp.
It can be used with all 2x0.75 and 3x0.75 round and braided cables by Creative-Cables.
This type of switch allows for extremely simple on/off control and is designed to interrupt the live (one pole). The double-pole switch, on the other hand, interrupts both the live and neutral (two poles) simultaneously. Generally, single-pole switches are ideal for low-power electrical devices, including table lamps or wall lights with a plug.
The pull switch, with its on/off lever, offers an intuitive and practical user experience. The lever allows you to switch on or off with a single movement. The design also makes it perfect for one-handed use.
Elegant and modern style: the cylindrical shape of this switch gives it a distinctive look, making it suitable for various types of environments and enhancing their character. The ideal choice for those seeking a modern, refined aesthetic.
Technical specifications:
Rated voltage: 250V
Resistive load: 2A
Inductive load: 0.5A
Lamp load: 0.5A
Rated current: max 75W - LED lamps
Terminals: screw type

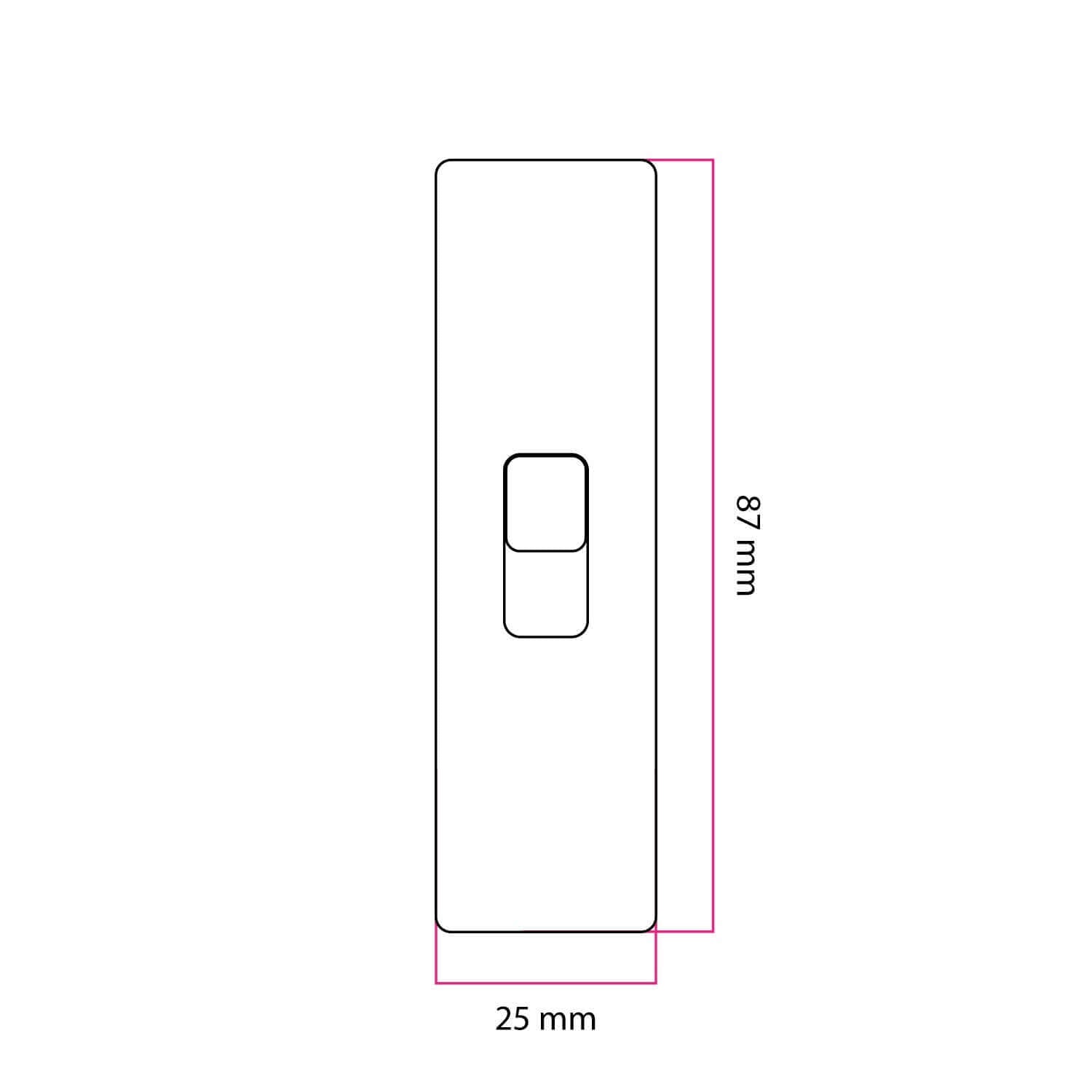

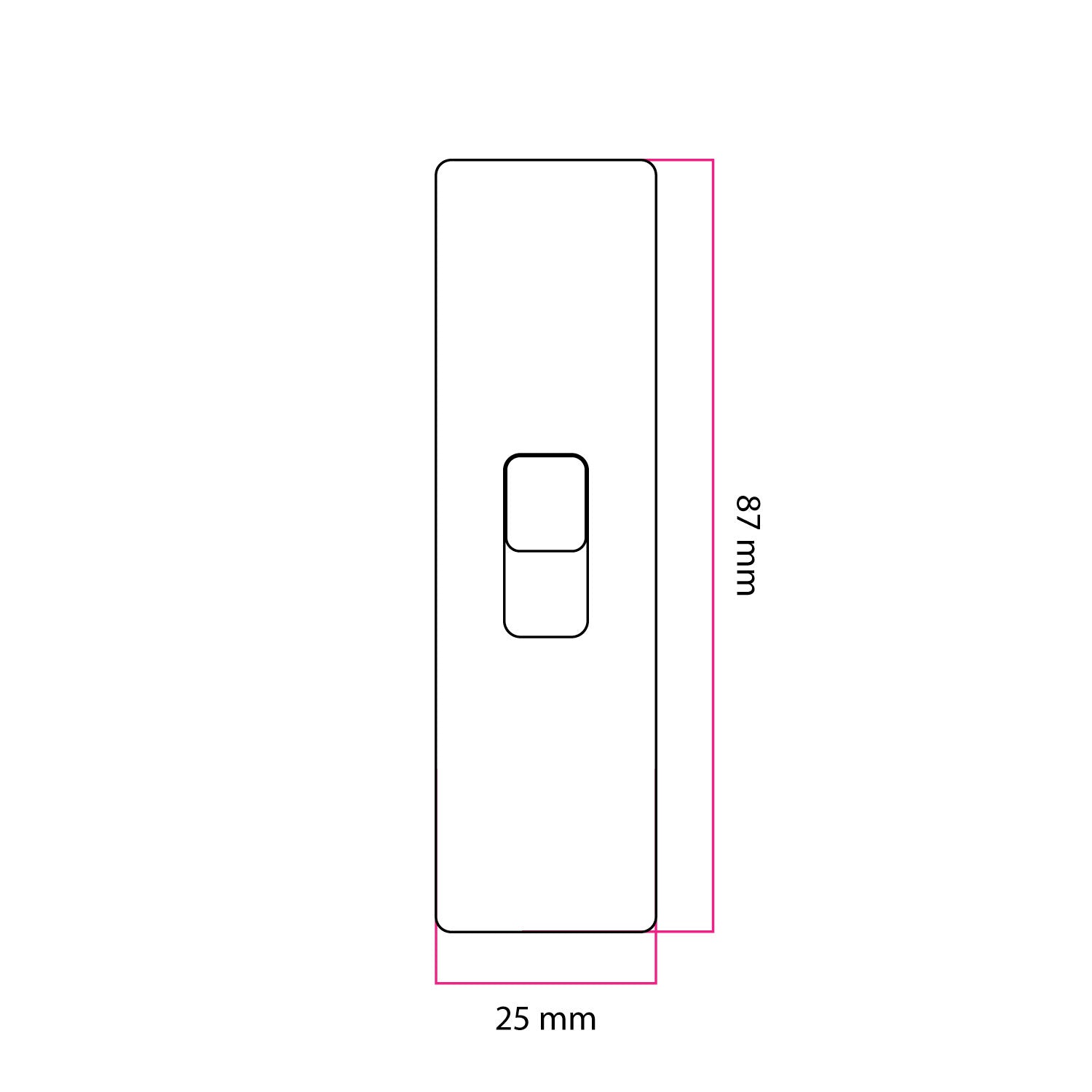

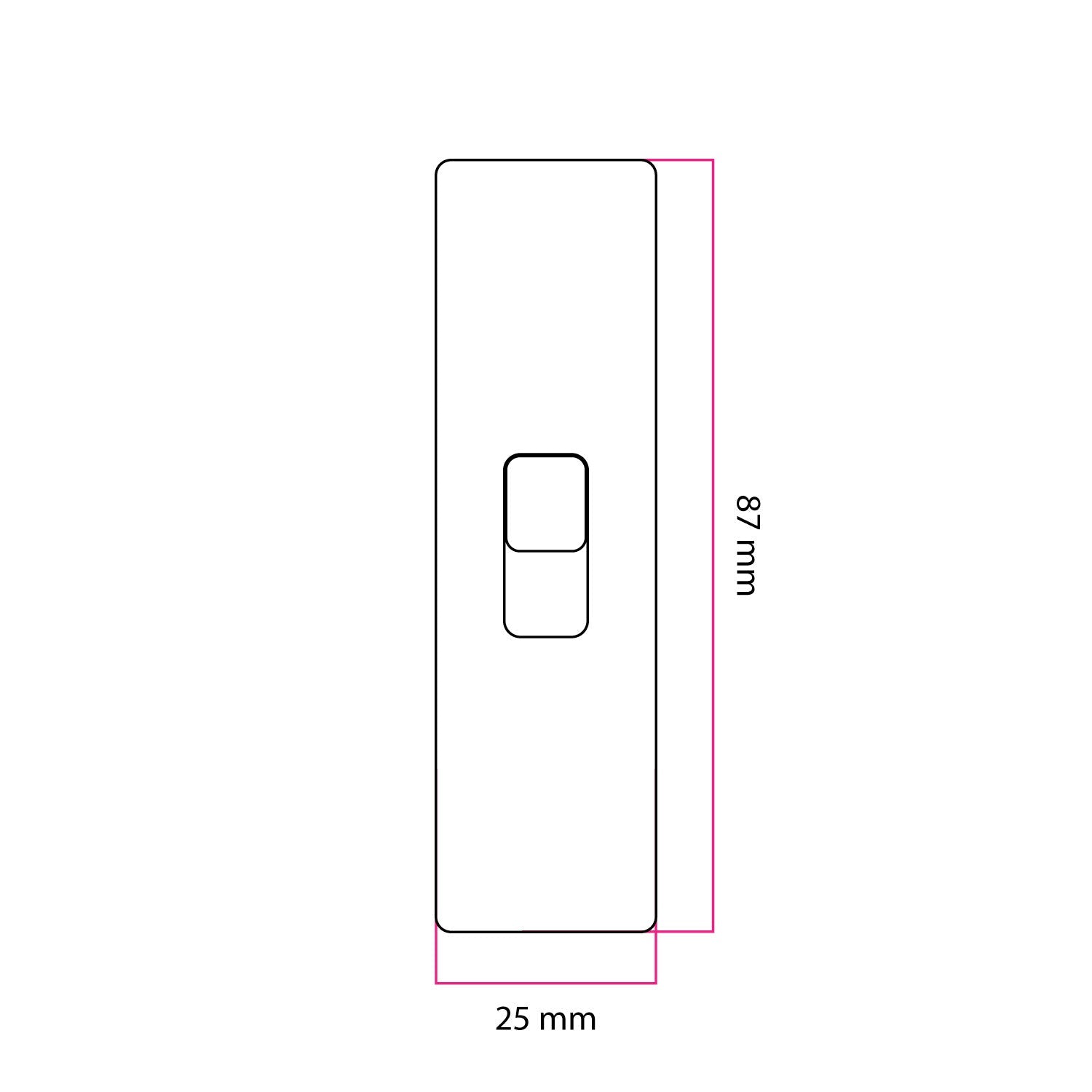

Dimensions: ⌀ 25 mm length 87.5 mm
CE certified
Use - for wiring of lighting fixtures with:
Flat cables H03VVH2-F 2x0.75mm2, round cables H03VV-F 2x-3x0.75mm2 and braided cables FRRTX 2x-3x0.75mm2
Flat cables H03V2V2H2-F 2x0.75mm2 or round cables H03V2V2-F 2x-3x0.75mm2 T90°C
PLEASE NOTE: before working, disconnect the power by operating the main switch.
Technical details
Technical details
Materiale | Termoplastica |
---|
