Connection kit with protective box for cables and double cable clamp
Connection kit with protective box for cables and double cable clamp
Available in stock
Request a free personalized consultation.
Description
Description
The suspension connection kit with recessed ceiling rose enables quick and safe connections.

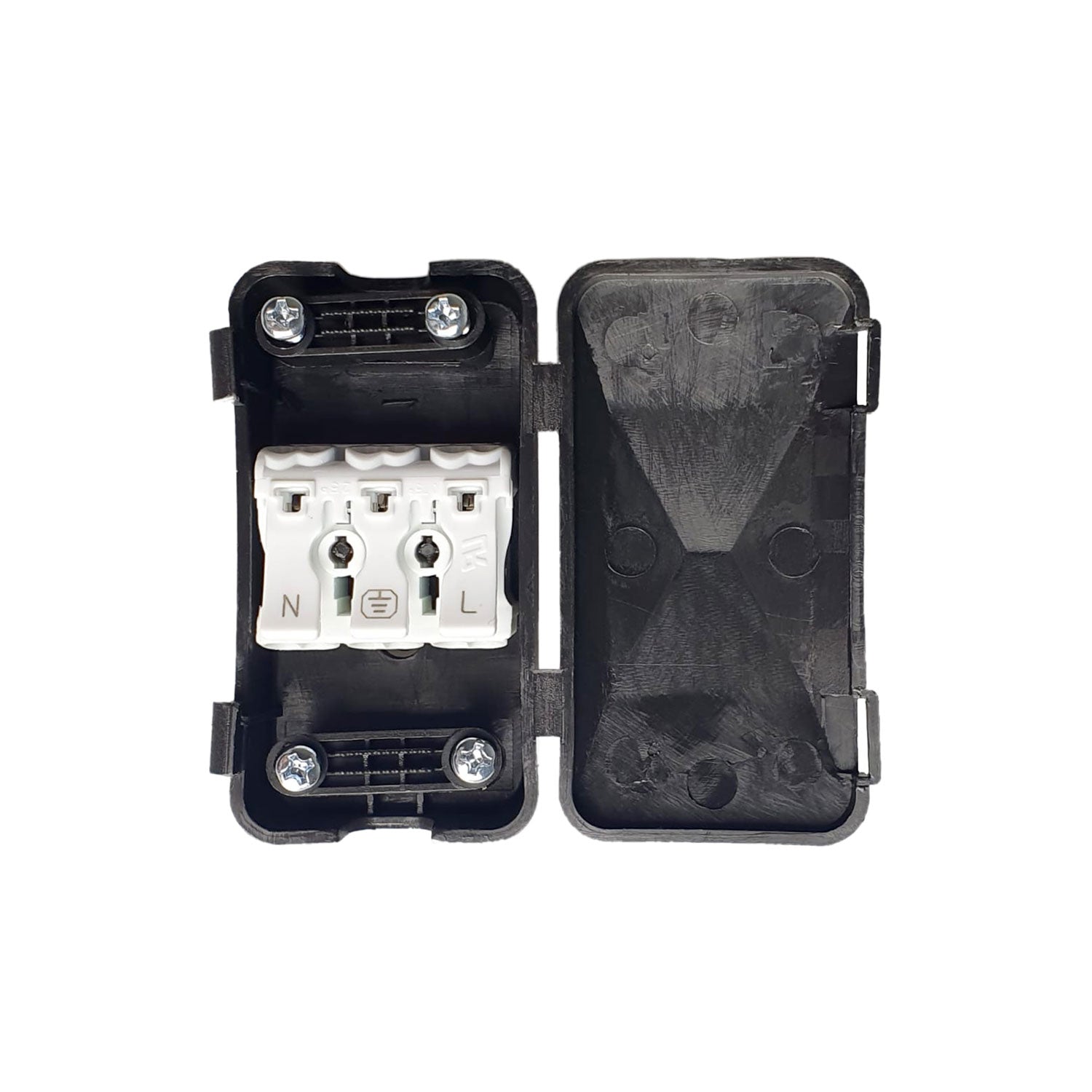

The plastic box acts as an insulator, protecting the connectors inside. It is also equipped with two cable clamps, one on each side, which ensure the safety and stability of the cables in the event of any external strain.

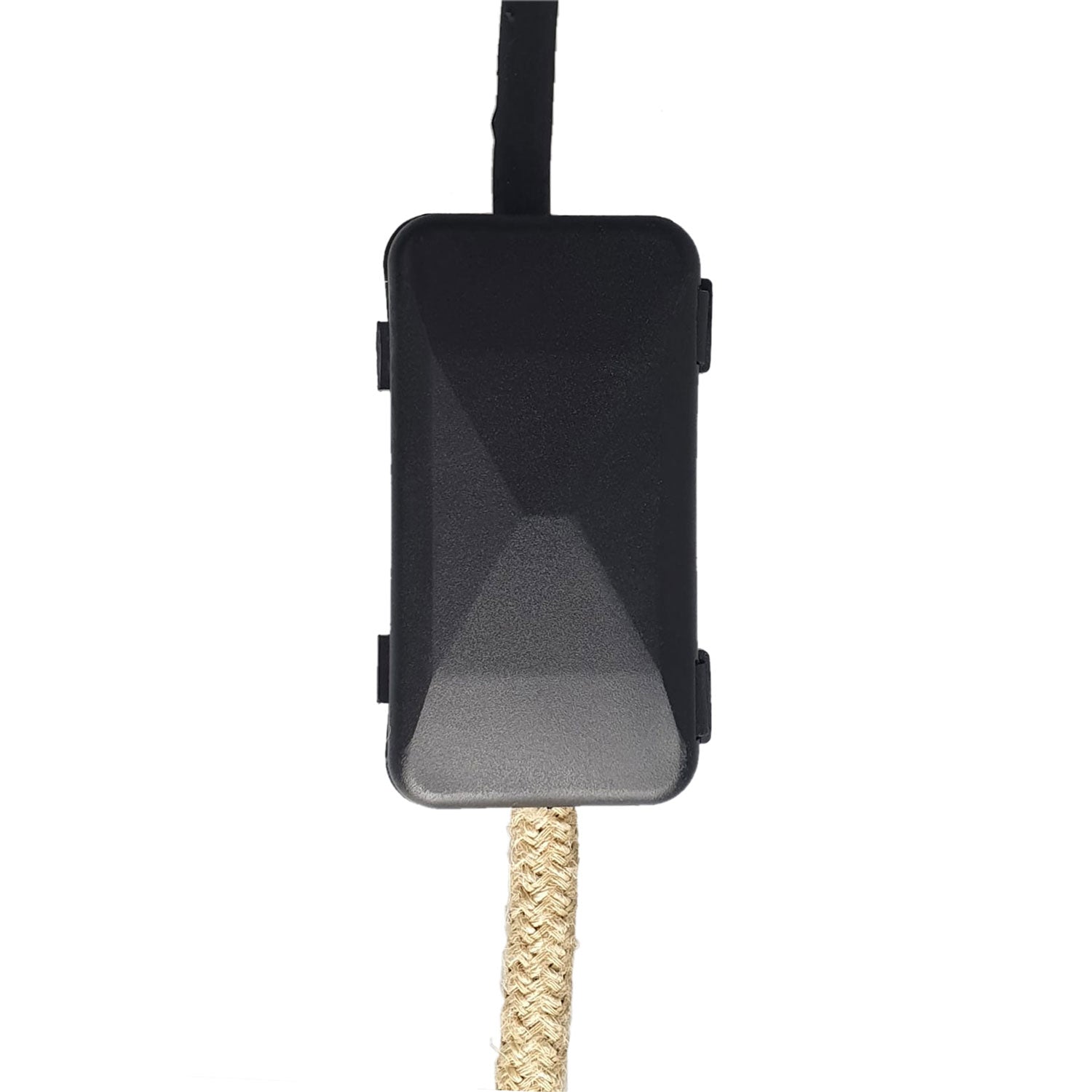

By concealing the connection inside the plasterboard false ceiling, you can replace a classic ceiling rose with the recessed ceiling rose and achieve a simple, minimal attachment.
Technical specifications:
Connection kit with protective box and double cable clamp:
Length: 62 mm
Width: 34 mm
Height: 21 mm
1 connector - 2 entries for each pole
Number of entries per side: 6
Permitted cable cross-section from 0.75 mm2 to 2.5 mm2
Rated voltage: 450 V
Rated current: 24 A
Maximum permitted ambient temperature according to EN 60998: 85° C
Suitable for class 1 devices
Technical details
Technical details
Materiale | Termoplastica |
---|
